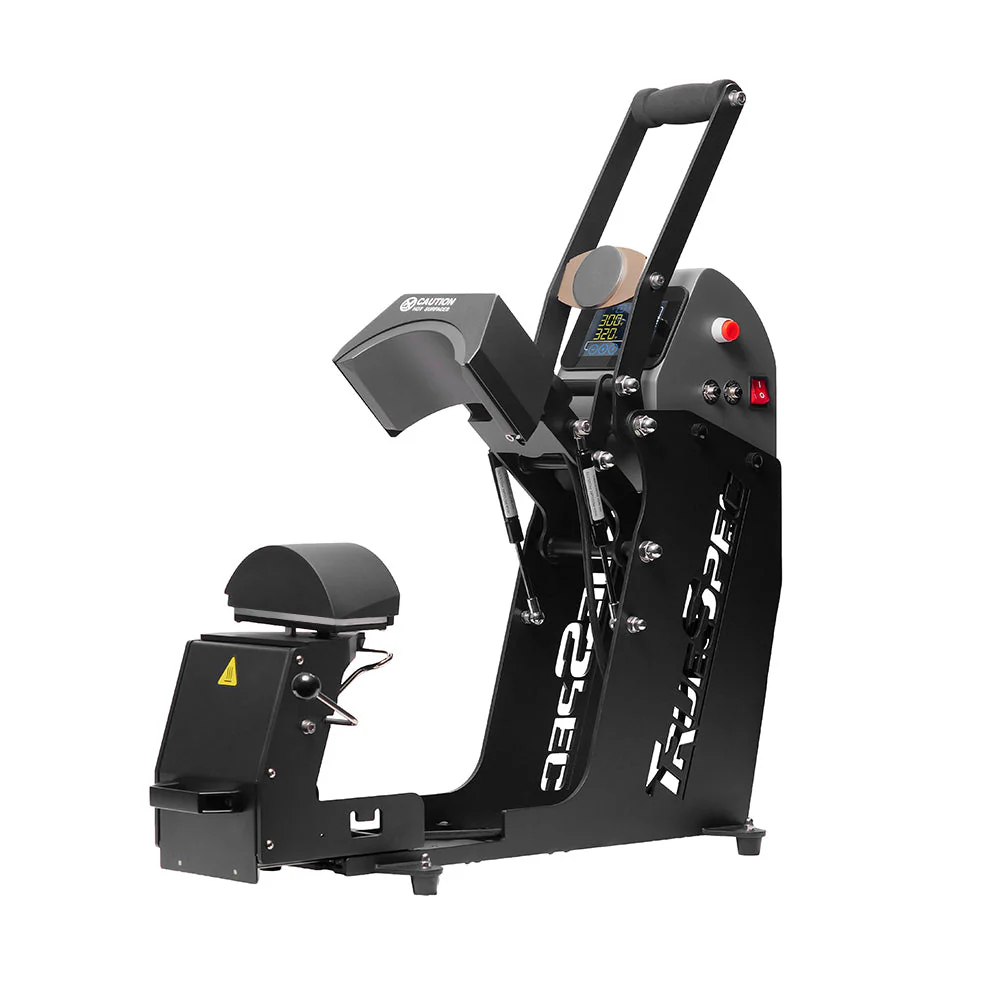

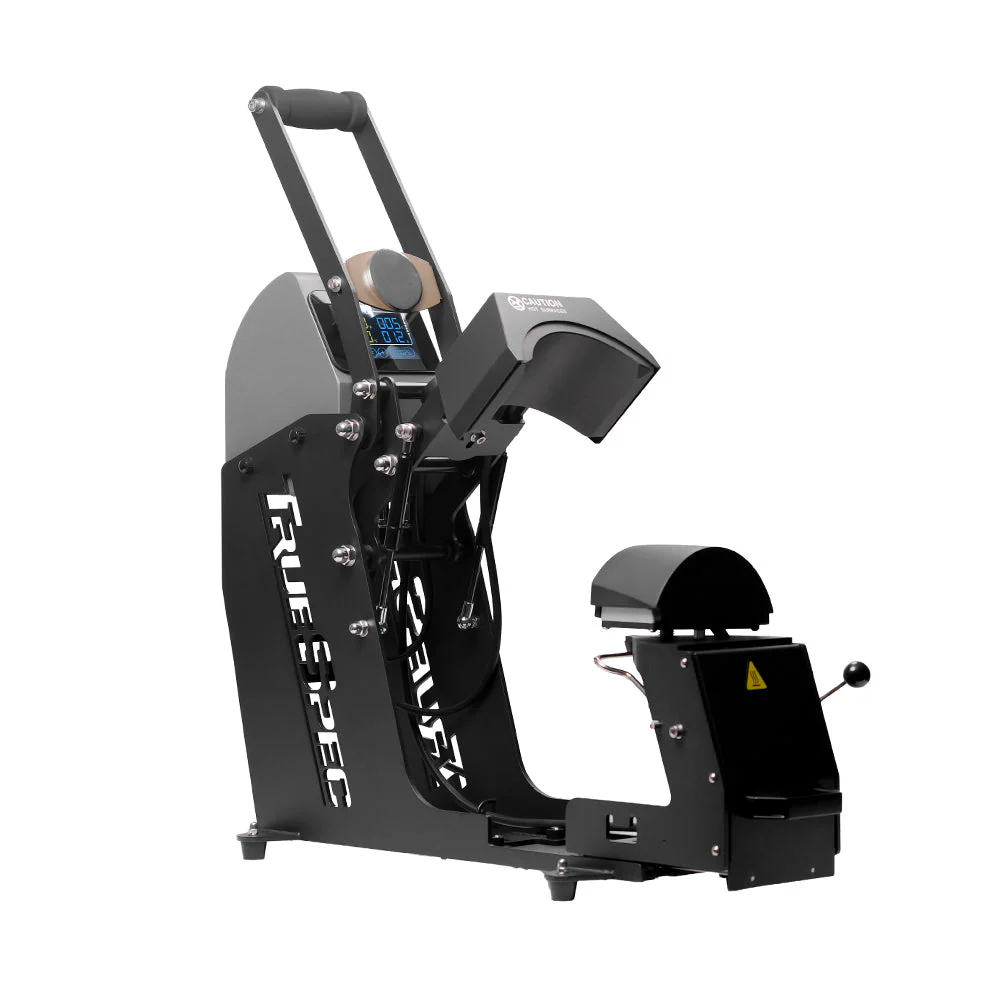

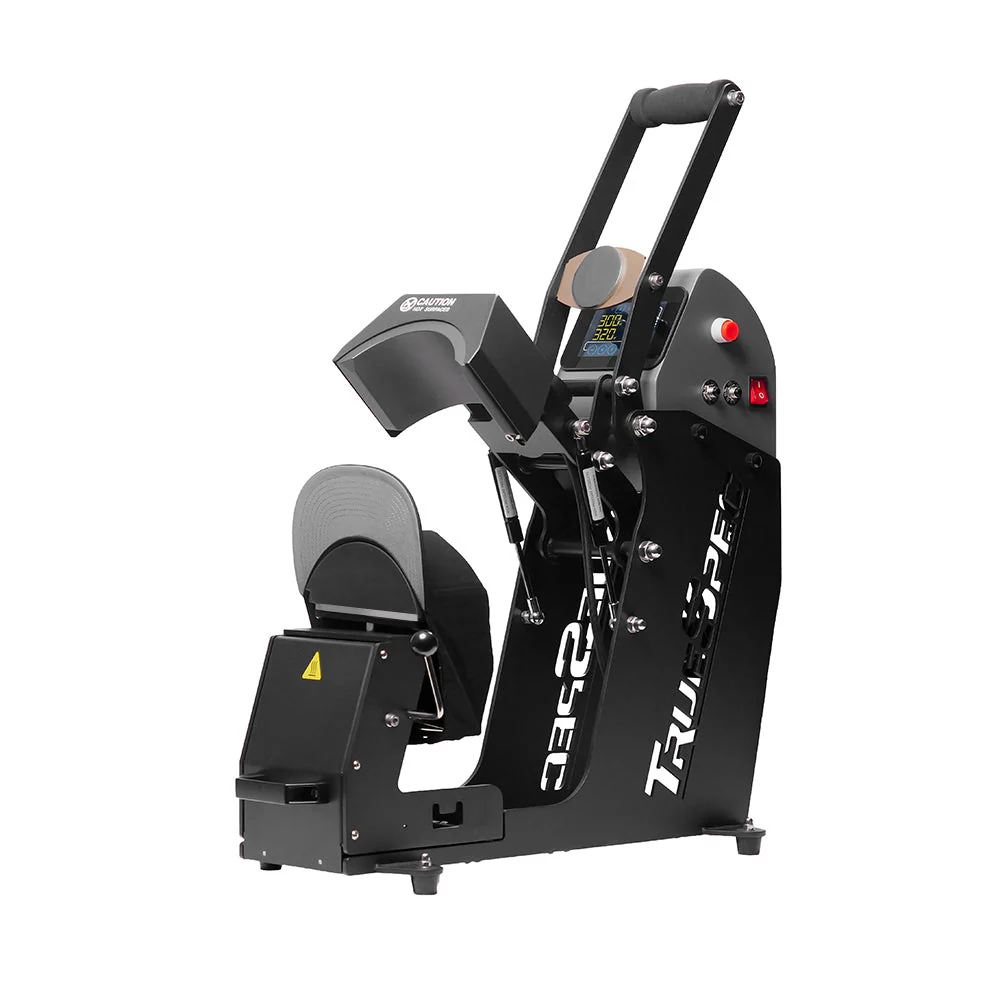

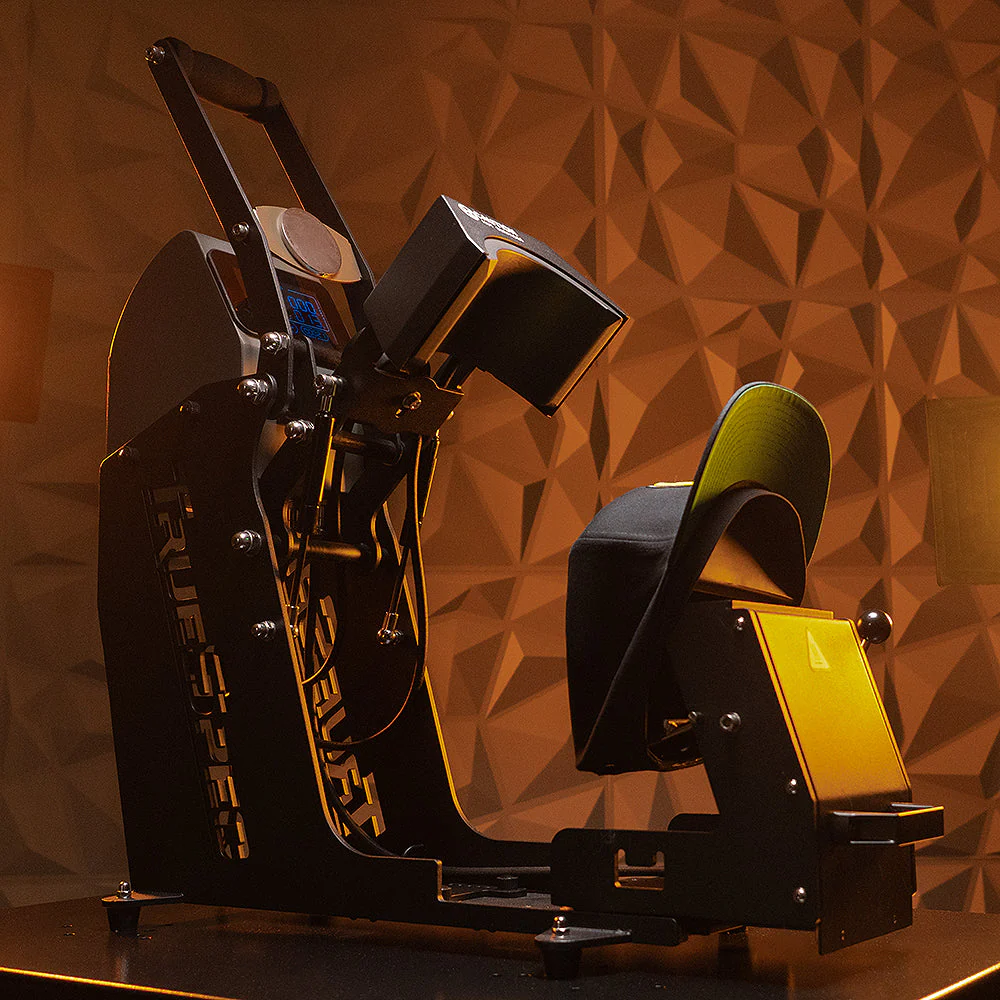

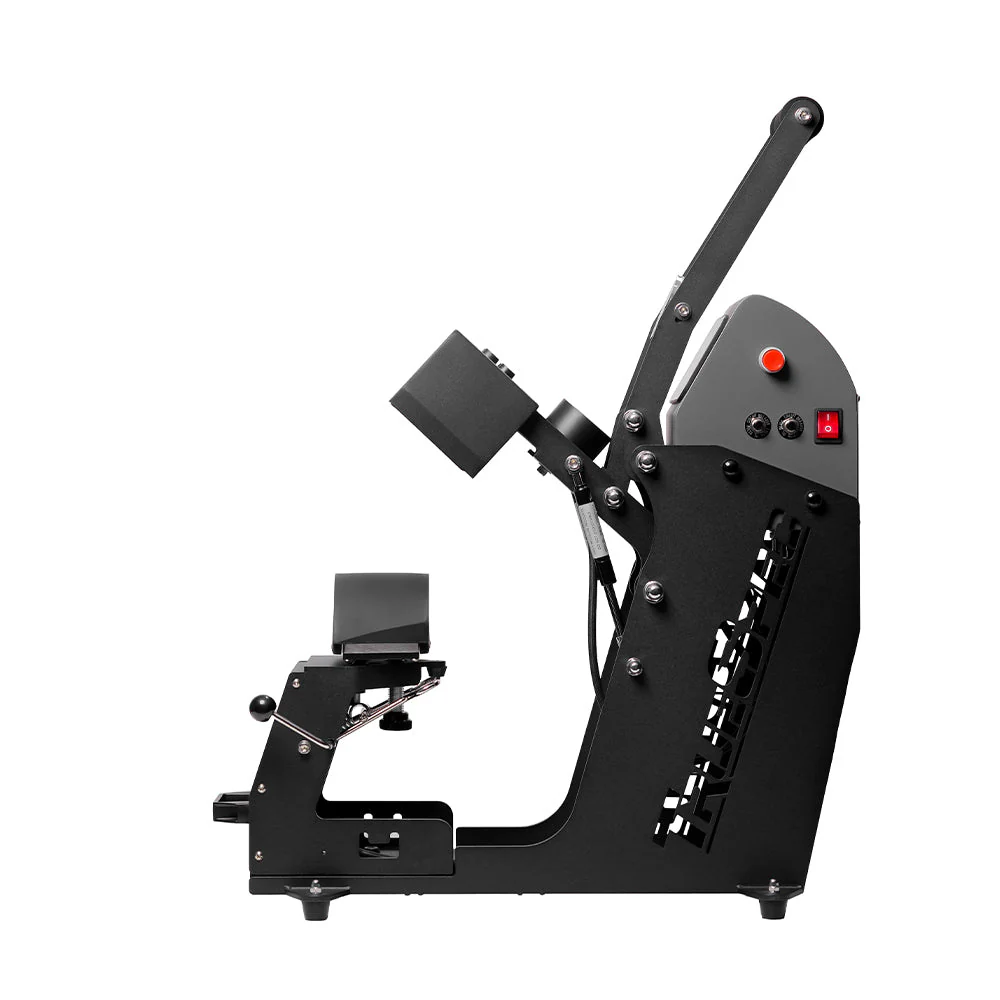

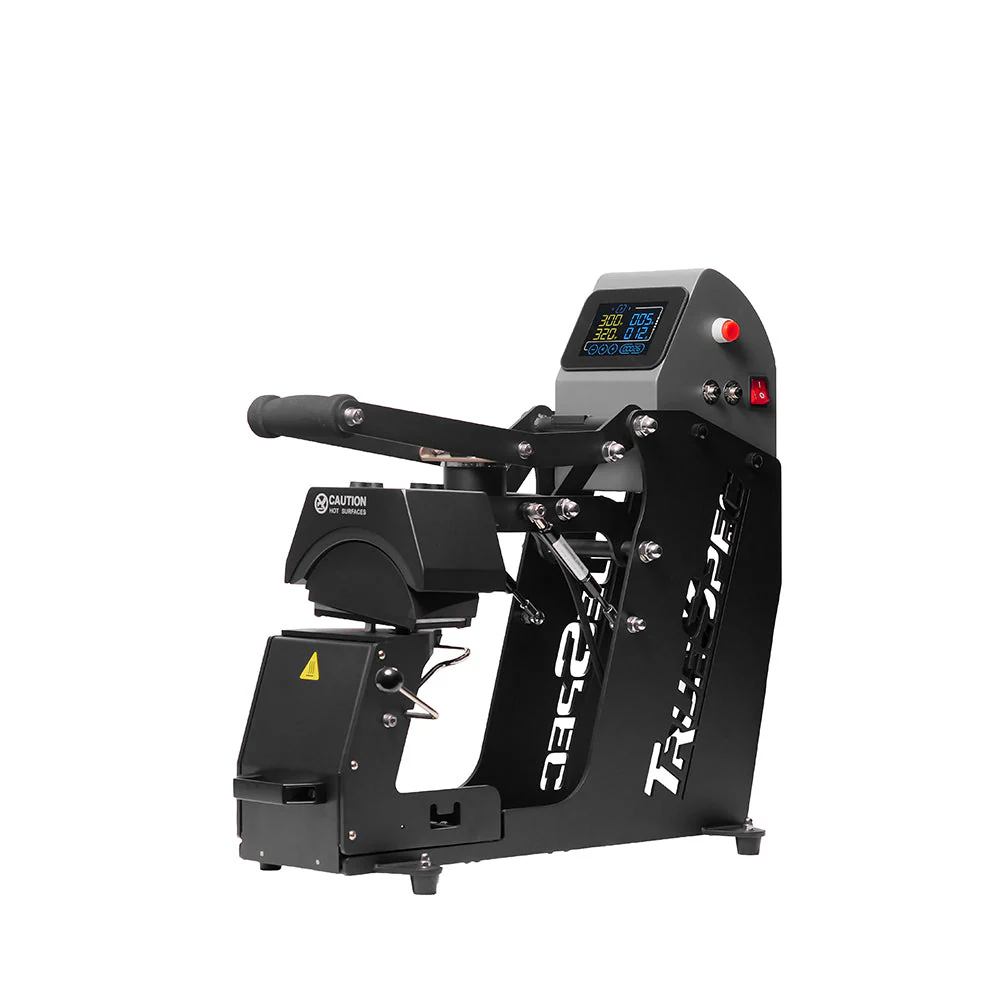

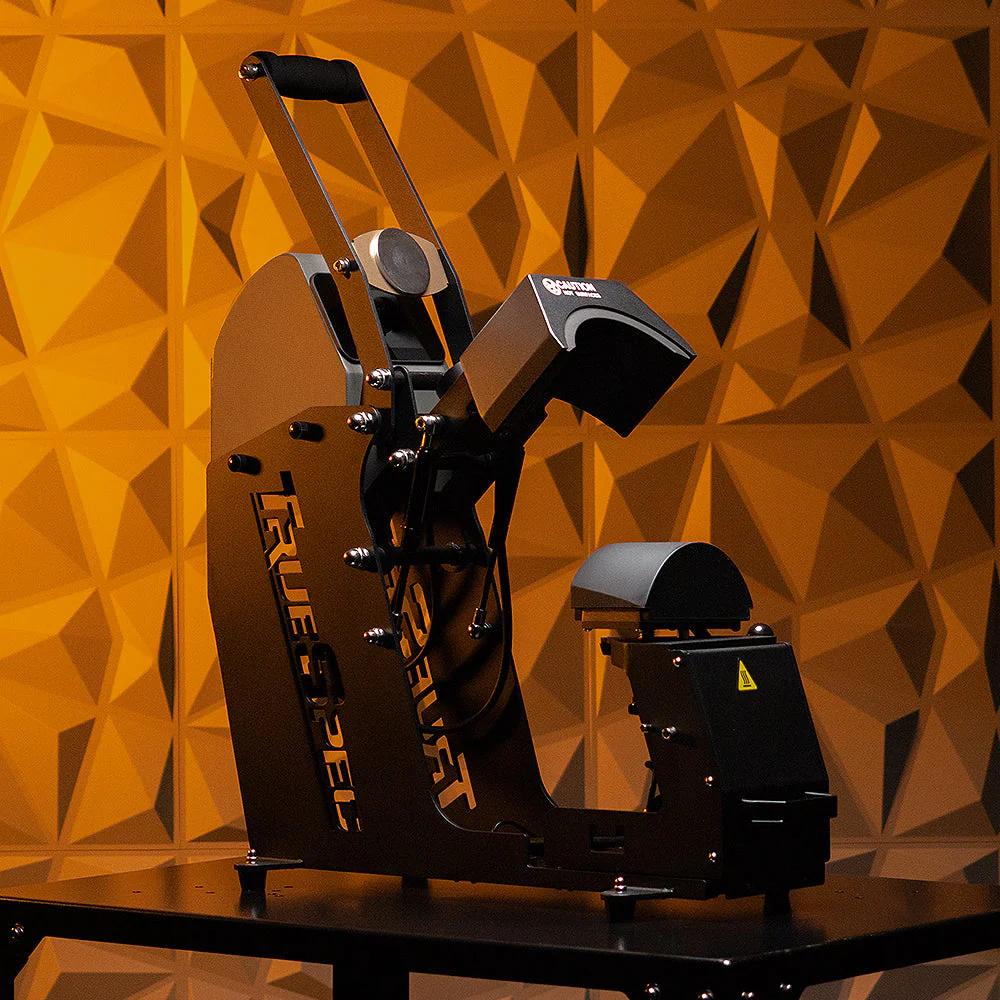

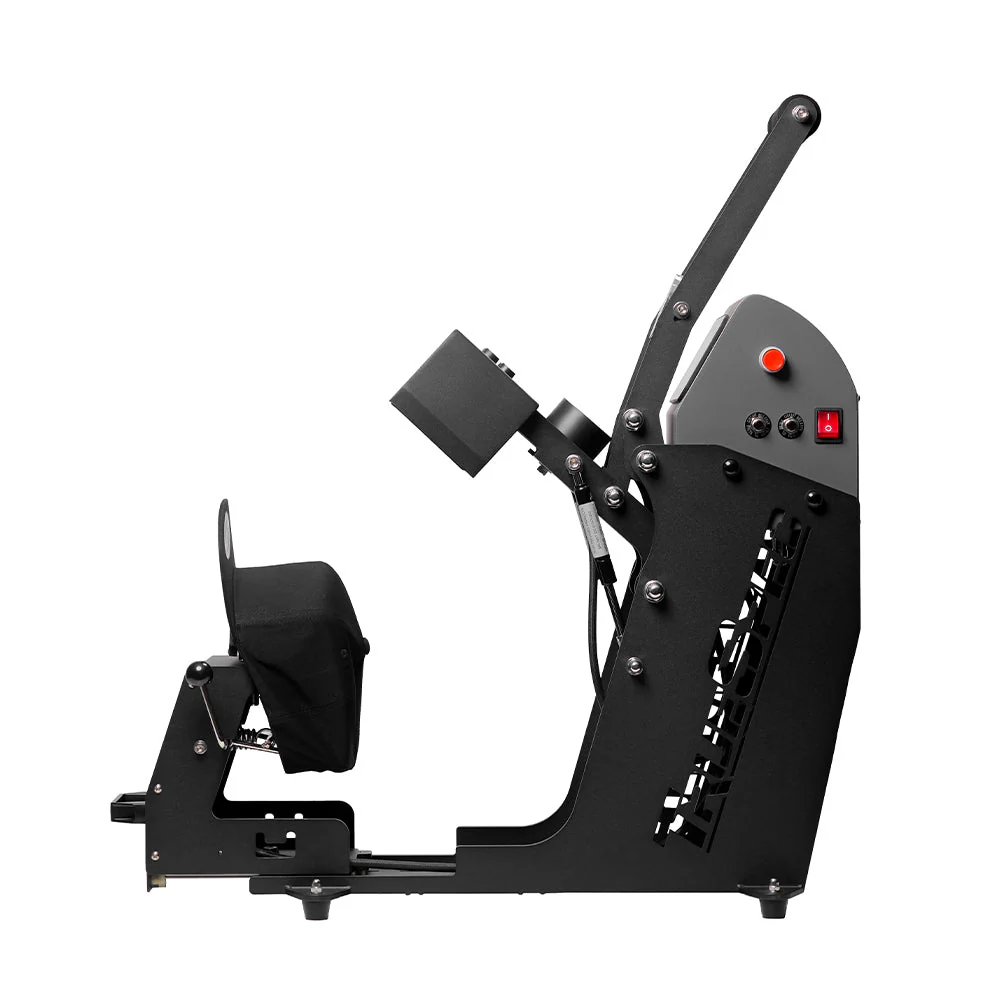

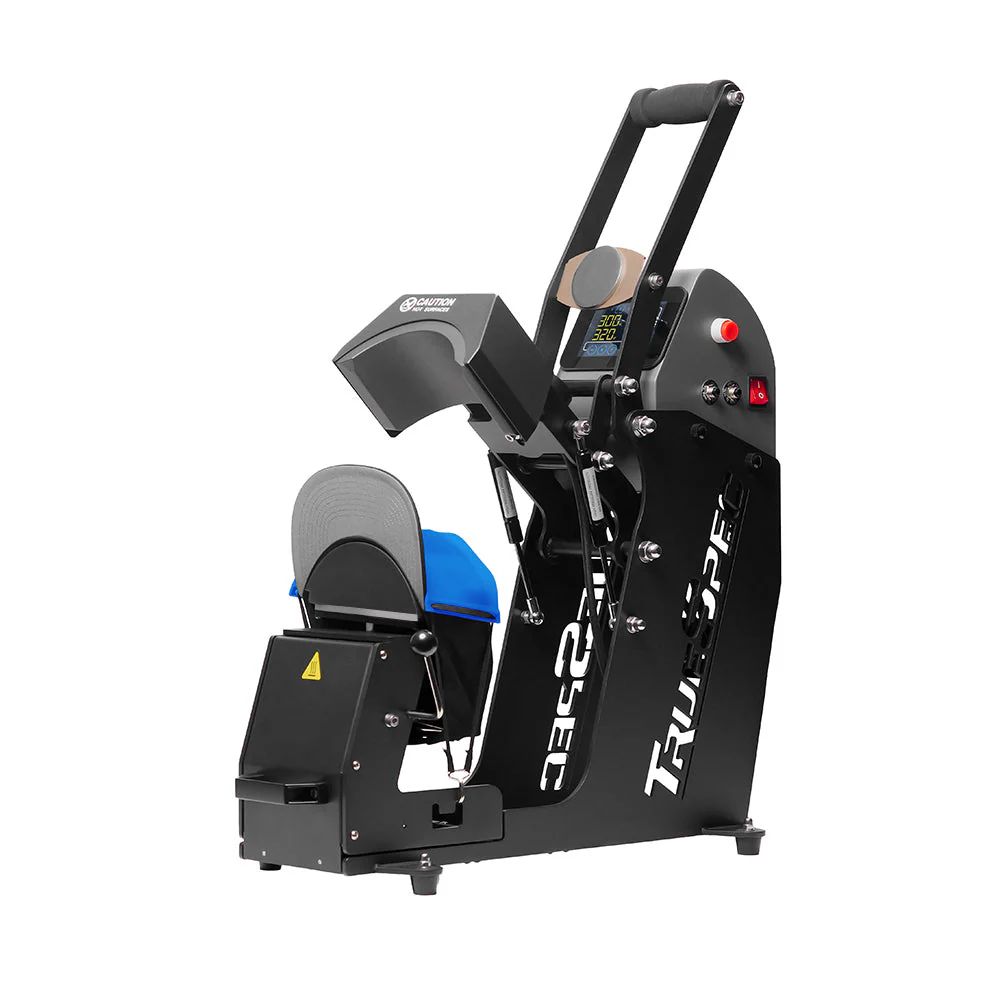

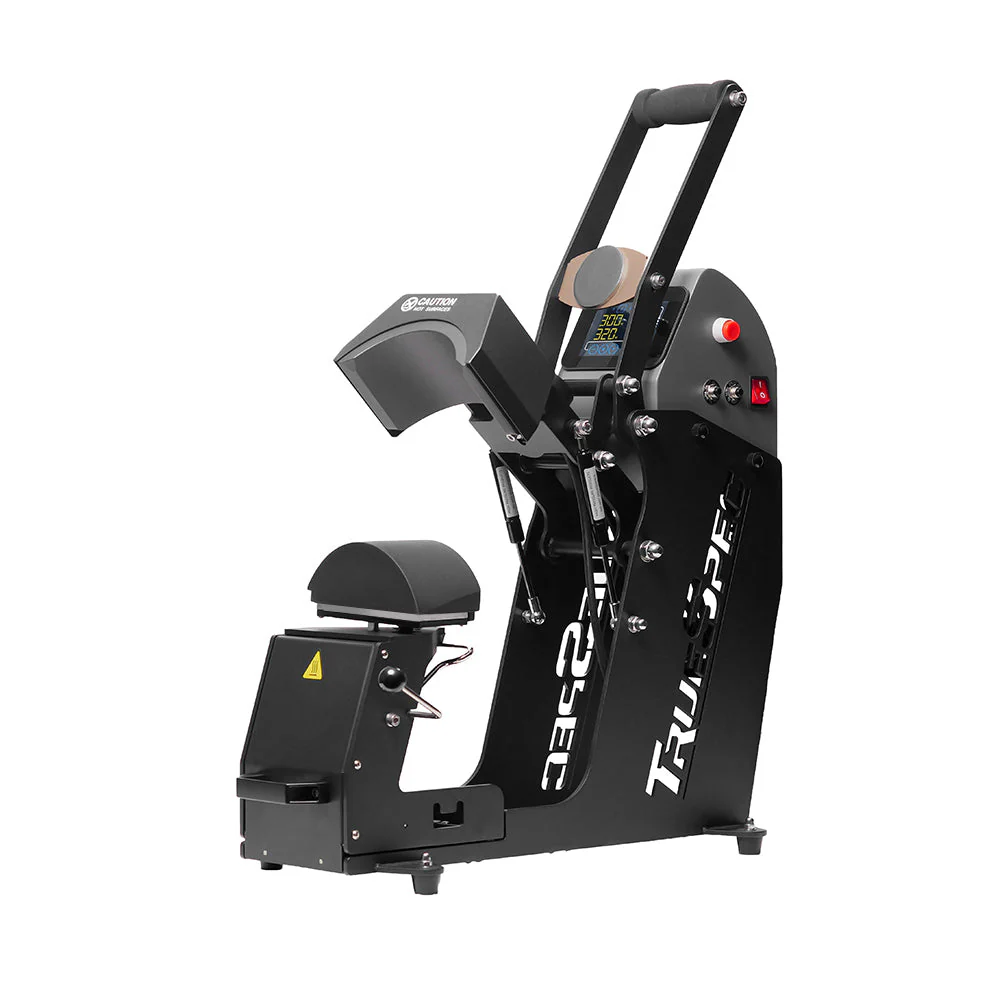

HPN TrueSpec Dual Heat Slide-Out Cap Press

Built for top quality cap patch decoration, the TrueSpec Cap Heat Press delivers precision control, improved heat consistency, and operator-focused safety features. Engineered from the ground up for modern hat styles, it’s designed to produce reliable, repeatable results in high-volume environments.

Reinventing cap pressing starts with understanding its biggest frustrations. From structured Richardson 112 caps and thick specialty patches to sensitive performance materials, modern headwear demands more than traditional cap presses were designed to deliver. The TrueSpec Cap Heat Press was developed to eliminate common issues such as scorching, heat tape marks, alignment errors, accidental injuries, and unintended bill contact by creating a safer, and more versatile platform for today’s decorators.

Specifications

• Heat Press Style: Dual Heat Slide-Out Cap Press
• Heat Press Dimensions: 23" x 10" x 30" (D x W x H in open position)

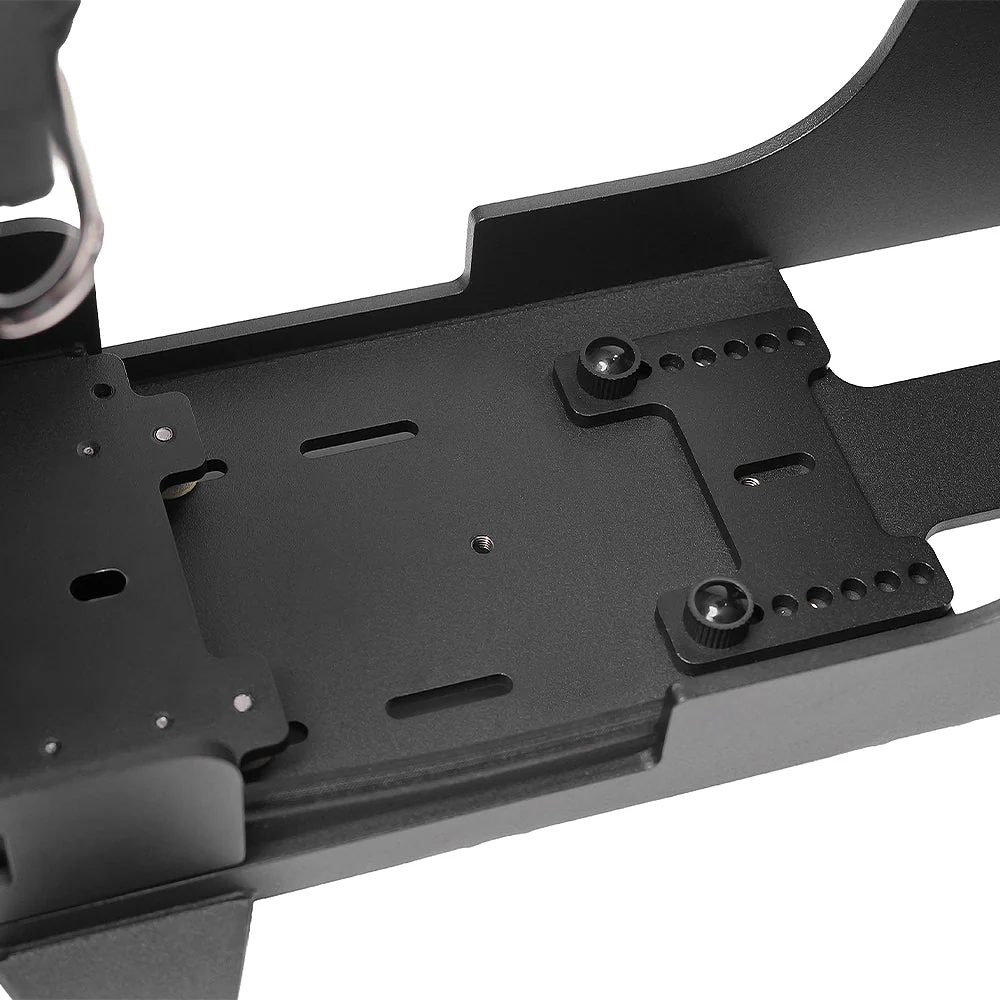

• Heat Press Dimensions: 27" x 10" x 30" (D x W x H with slide-out drawer extended)
• Heat Press Base Dimensions: 18.5" x 9.5"
• Upper Heating Element Size: 3.65" x 7"
• Lower Heating Element Size: 3.35" x 6"
• Heat Press Weight: 48 lbs

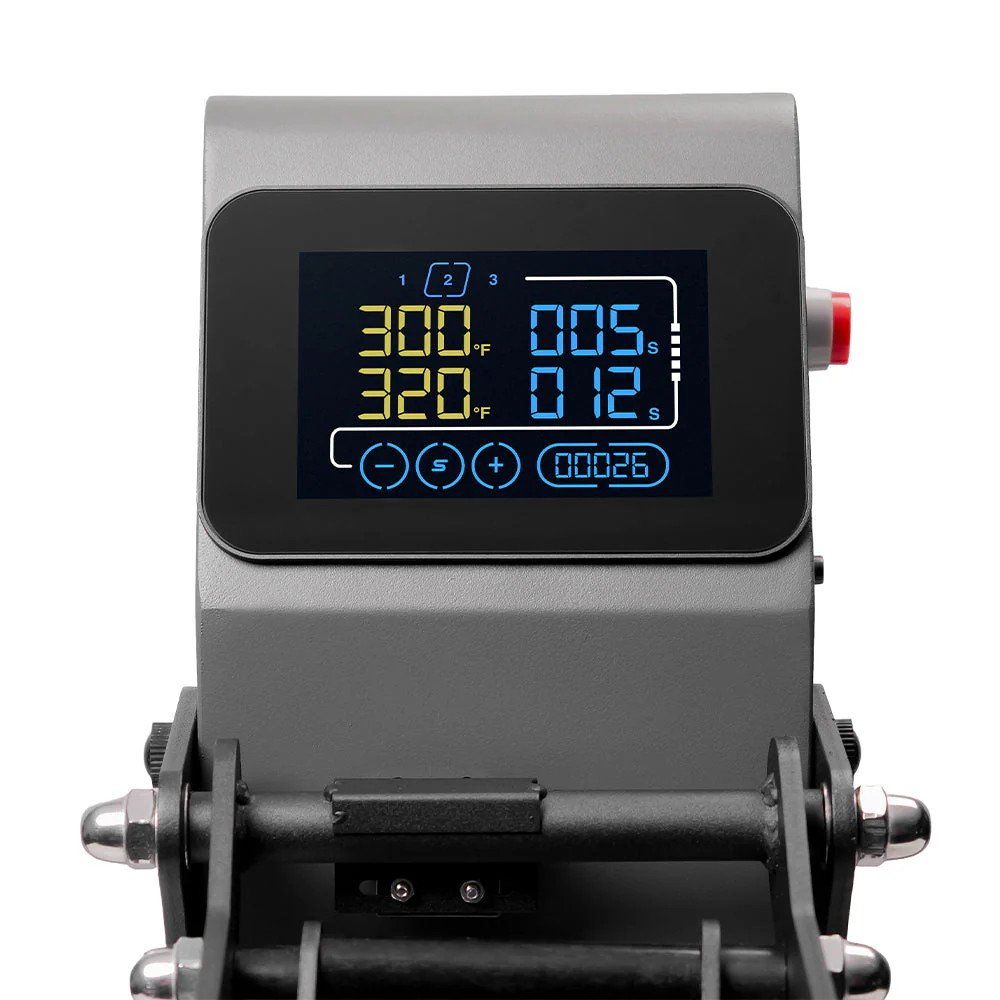

• Gauge Reading: Fahrenheit or Celsius
• Voltage: 120V
• Power Rating: 1200W / 10 Amps
• Maximum Upper Temperature: 400º F
• Maximum Lower Temperature: 320º F (280º F surface for patches)
• Time Range: 0–999 seconds
• Shipping Weight: 67 lbs
• Shipping Dimensions: 27" x 16" x 28"
